Table Saw Rip Capacity Explained – Maximize Your Woodworking Efficiency

What is Table Saw Rip Capacity?

Table Saw Rip capacity is an essential factor to consider when choosing a table saw because it determines the maximum width of material that can be cut when making a rip cut. If the rip capacity is not sufficient for the material you want to cut, you will not be able to cut. Having a table saw with a high rip capacity will give you more flexibility and allow you to work on larger projects such as wide board or plywood.

However, if you mostly work on small projects, you may not need a saw with a large rip capacity and in that case, you can save money by buying a saw with a smaller rip capacity. Overall, understanding and considering the rip capacity of a table saw is crucial for ensuring that you can make the cuts you need for your projects.

KEY TAKEAWAY

Different types of table saws have varying rip capacities. Benchtop table saws typically have a limited rip capacity of 12-24 inches, while contractor table saws have a rip capacity of 25-30 inches, and cabinet table saws have a rip capacity of 50-60 inches.

Understand The Table Saw Rip Capacity and Its Relationship to The Width of the Material Being Cut

Rip capacity refers to the maximum width of material that can be cut when making a rip cut, which is a cut that runs parallel to the grain of the wood. The rip capacity is typically measured in inches and is determined by the distance from the saw blade to the closest fixed component of the saw, such as the rip fence or the edge of the saw table.

The relationship between the rip capacity and the width of the material being cut is straightforward. If the width of the material you want to cut is less than or equal to the saw’s rip capacity, you will be able to make the cut. However, if the width of the material is greater than the saw’s rip capacity, you will not be able to make the cut. In this case, you will have to either make multiple passes to cut the material to the desired size or look for a saw with a larger rip capacity.

It’s important to note that the rip capacity of a table saw can be affected by other factors such as the type of cut being made, the size and position of the blade, and the presence of any additional accessories or attachments. For example, using a dado blade or a stacked dado set will reduce the rip capacity of the saw.

Factors That Affect Table Saw Rip Capacity

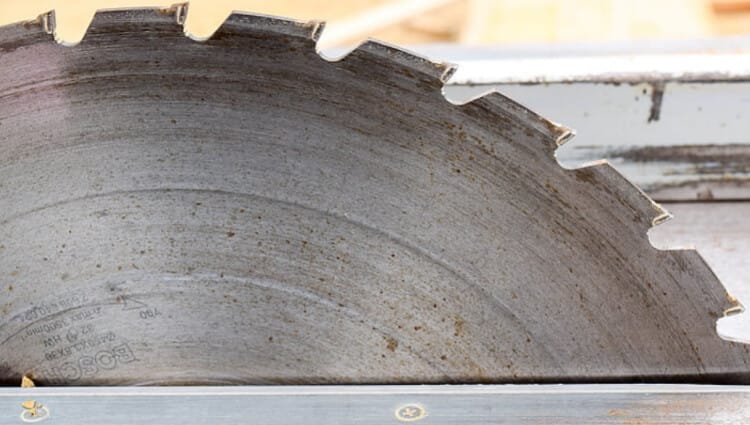

Blade Size and Position

• Blade size refers to the diameter of the saw blade. A larger blade diameter will allow for a wider cut, but it will also reduce the maximum depth of the cut. For example, a 10-inch blade will have a larger rip capacity than a 7-inch blade, but it will also have a smaller maximum depth of cut.
• Blade position refers to the location of the blade in relation to the saw table. A blade that is closer to the edge of the saw table will have a larger rip capacity than a blade that is farther away.
• When choosing a table saw, it’s important to consider the size and position of the blade in relation to the materials you plan to cut and the type of projects you will be working on. If you plan to work on large projects or cut wide materials, you will need a saw with a larger blade and a blade that is closer to the edge of the saw table. If you plan to work on small projects or cut narrow materials, you can choose a saw with a smaller blade and a blade that is farther away from the edge of the saw table.

Table size and extensions

• Table size refers to the dimensions of the saw table, which is the surface on which the material is placed for cutting. A larger table size will allow for a wider cut, but it will also take up more space in your workshop. A larger table size also allows for more support for larger pieces of wood and makes it easier to handle large sheets of plywood or other large materials.
• Table extensions are additional pieces of material that can be attached to the sides of the saw table to increase its size. These extensions can be added to the left or right side of the saw table, or both, depending on the model of the saw. They are designed to provide additional support for wider materials and increase the table saw rip capacity.

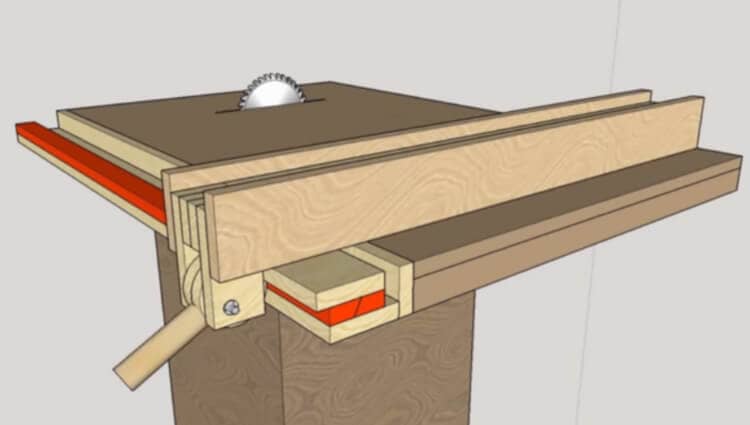

Fence Design and Adjustability

• Fence design and adjustability are additional factors that can affect the rip capacity of a table saw.
• A good fence design should be sturdy, straight, and easy to adjust. A high-quality fence design will ensure that the material is held securely in place and that the cuts are precise and accurate.
• Fence adjustability is the ability to adjust the position of the fence in relation to the blade. A fence that is easily adjustable will allow you to make cuts at different widths, which can increase the rip capacity of the saw. A fence that is not easily adjustable will limit the width of the cuts that can be made.

How to Measure Rip Capacity?

Techniques for measuring rip capacity on different types of table saws

Measuring rip capacity on a table saw is an important step in determining the capabilities of the saw and whether it will be able to handle the materials and projects you have in mind. There are a few different techniques for measuring rip capacity on different types of table saws.

1. Measure The Distance from The Blade to The Inside of the Fence: This is the most common method for measuring rip capacity on a table saw. To do this, simply measure the distance from the blade to the inside edge of the fence when the blade is set to its maximum width. This measurement will give you the maximum width of material that can be cut on the saw.

• Measure The Distance from The Blade to The Outside of the Fence: This method is similar to the first, but it measures the distance from the blade to the outside edge of the fence. This measurement will give you the maximum width of material that can be cut on the saw, including any overhang on the material.

• Measure The Width of the Table: This method involves measuring the width of the table and subtracting the width of the blade. This measurement will give you the maximum width of material that can be cut on the saw, but it doesn’t take into account the width of the fence or any overhang on the material.

• Use The Manufacturer’s Specifications: Many manufacturers will provide the rip capacity of their table saws in their product specifications. This is the most accurate and reliable method of measuring rip capacity, but it may not take into account any modifications made to the saw.

Importance of Checking and Adjusting Rip Capacity Before Making Cuts

• Checking and adjusting rip capacity before making cuts is an important step in ensuring the accuracy and safety of your table saw projects.
• Checking rip capacity involves measuring the maximum width of material that can be cut on the saw using one of the techniques described in the previous answer. This will give you an idea of the capabilities of the saw and whether it will be able to handle the materials and projects you have in mind.
• Adjusting rip capacity involves making any necessary adjustments to the saw to increase or decrease the maximum width of material that can be cut. This can include adjusting the position of the fence, using a different size blade, or adding or removing table extensions.
• By checking and adjusting rip capacity before making cuts, you can ensure that the saw is properly set up and able to handle the materials and projects you have in mind. This will help to prevent mistakes and accidents while using the saw, and will also help to ensure that your cuts are accurate and precise.
• Additionally, it’s important to remember that checking and adjusting rip capacity should be done each time before making a cut, and not just when setting up the saw. Even if the saw hasn’t been moved or touched since the last time it was used, the blade may have dulled, the fence may have moved, or other factors that may have affected the rip capacity.

Types of Cuts and Their Impact on Rip Capacity

Ripping Lumber and Plywood

• Rip capacity plays an important role in determining the types of cuts that can be made on a table saw and the materials that can be used. When it comes to ripping lumber and plywood, there are a few key factors to consider.
• Ripping lumber creates two narrower boards. The maximum width of the board that can be ripped on a table saw is determined by the saw’s rip capacity. If a board is wider than the saw’s rip capacity, it will need to be cut in multiple passes or on a different saw.
• Plywood is a composite material made up of thin layers of wood veneer glued together. When ripping plywood, the thickness of the plywood and the number of layers it has will affect the rip capacity needed. Thicker plywood and plywood with more layers will require a greater rip capacity.
• It’s also important to note that, when ripping both lumber and plywood, the position of the blade and the fence can affect the rip capacity as well. A blade that is set too close to the fence will limit the width of the material that can be cut, while a blade that is set too far away from the fence will increase the width of the material that can be cut.

Crosscutting and Bevel Cutting

• In addition to ripping, there are other types of cuts that can be made on a table saw, such as crosscutting and bevel cutting, and these types of cuts also have an impact on rip capacity.
• Crosscutting refers to cutting a board or piece of lumber across its width, creating two shorter boards. The maximum width of the board or piece of lumber that can be crosscut on a table saw is determined by the width of the saw’s table. While the rip capacity determines the maximum width of a board that can be ripped, the width of the table determines the maximum width of a board that can be crosscut.
• Bevel cutting refers to tilting the saw blade to make angled cuts. Bevel cutting can be used for a variety of applications, such as creating beveled edges or cutting compound angles. Bevel cutting does not affect the rip capacity of the saw, but it may affect the width of the material that can be cut. A saw with a smaller table or a narrower fence may have a limited ability to make wide bevel cuts.
• It’s important to note that both crosscutting and bevel cutting have an impact on the overall cutting capacity of a table saw. While rip capacity determines the maximum width of a board that can be ripped, the width of the table and the ability to make bevel cuts also play a role in determining the overall cutting capacity of a saw.

Choosing the Right Table Saw for Your Needs

How to Determine the Appropriate Rip Capacity for Your Projects and Materials?

When choosing a table saw, it’s important to consider the rip capacity that will be required for the types of projects and materials that you will be working with. The rip capacity of a table saw is the maximum width of material that can be cut when making a rip cut, which is a cut made parallel to the grain of the wood.

To determine the appropriate rip capacity for your projects and materials, you will need to consider the following factors:

• The Width of the Material That You Will Be Working With: If you plan on working with wide boards or sheets of plywood, you will need a table saw with a larger rip capacity. On the other hand, if you will mostly be working with narrower pieces of lumber, a smaller rip capacity will be sufficient.

• The Types of Cuts That You Will Be Making: If you plan on making a lot of dado cuts or groove cuts, you will need a table saw with a larger rip capacity to accommodate the width of the blades used for those cuts.

• The Size of Your Workspace: Larger table saws tend to have larger rip capacities, but they also take up more space. If you have a limited workspace, you may need to opt for a smaller table saw with a smaller rip capacity.

• Your Budget: Table saws with larger rip capacities tend to be more expensive than those with smaller rip capacities. Determine your budget and choose a table saw that fits within it and also meets your rip capacity requirement.

Ultimately, the key to choosing the right table saw for your needs is to consider the types of projects and materials that you will be working with, and to select a saw that has a rip capacity that can accommodate those materials.

Comparison of different types and models of table saws with varying Rip capacities

When it comes to choosing the right table saw for your needs, it’s helpful to compare different types and models of table saws with varying rip capacities. Here are a few common types of table saws and their typical rip capacities:

• Benchtop Table Saws: These are smaller, portable saws that are typically used by hobbyists and DIYers. They have a limited rip capacity, usually between 12-24 inches. They are great for small projects and for those who have limited space.


• Contractor Table Saws: These are larger, more powerful saws that are designed for professional use. They typically have a rip capacity between 25-30 inches. They are great for larger projects and for those who need a more powerful saw.

• Cabinet Table Saws: These are the largest and most powerful table saws, designed for heavy-duty use in a professional setting. They typically have a rip capacity between 50-60 inches. They are great for large-scale projects and for those who need the highest level of precision and power.

Conclusion

In conclusion, Rip Capacity is an important feature to consider when choosing a table saw. It refers to the width of the material that can be cut on the saw’s table. A larger rip capacity means that the saw can handle wider materials. When choosing a table saw, it’s important to consider the rip capacity that is appropriate for your projects and materials.

There are different types of table saws available, each with varying rip capacities. Benchtop table saws typically have a limited rip capacity of 12-24 inches, while contractor table saws have a rip capacity of 25-30 inches, and cabinet table saws have a rip capacity of 50-60 inches.

When comparing different models, also consider factors such as the quality of the saw, the power of the motor, the type of blades, and the overall design of the saw. Keep in mind that a larger rip capacity doesn’t always mean a better saw, and choose a saw that fits within your budget and meets your rip capacity requirement while also meeting other needs.
